The OFS team is excited to meet you at BICSI Winter Conference & Exhibition 2025 and talk fiber with other enterprise, data center, and information and communications technology professionals. As an exhibitor for BICSI, we will be at booth 709 for visitors to stop by, meet members of the team and see product demos. Our technical engineers, sales and product managers will be there to answer all questions about OFS optical innovations and product solutions.
See how our award winning fiber is made!
OFS BICSI Showcase
ROLLABLE RIBBON CONNECTORIZED ASSEMBLY
Rollable ribbon fiber optic cables are one of the most exciting developments in outside plant (OSP) and indoor flame-rated cabling technology in years. These cables can help users achieve significant time and cost savings using mass fusion splicing while also doubling their fiber density in a given duct size compared to traditional flat ribbon cable designs. Each OFS rollable ribbon within a cable features 12 individual optical fibers that are partially bonded to each other at predetermined points. These ribbons can be “rolled” into a flexible and compact bundle that offers the added benefit of improved fiber routing and handling in closure preparation. The Rollable Ribbon Connectorized Assembly offers all the benefits of rollable ribbon cable including small outer diameter, tight bend radius and flexibility with termination counts of 24 – 864 fibers with the option of MPO, LC or SC connectors. The compact diameter of the OFS breakout design enables easy installation and pulling through cable trays. Breakout lengths are staggered for general use or customized for specific frame installation and are one hundred percent factory tested.
INVISILIGHT® SOLUTIONS
Let us simplify your fiber deployment and significantly improve the consumer experience while lowering costs and speeding installation.
 |
 |
 |

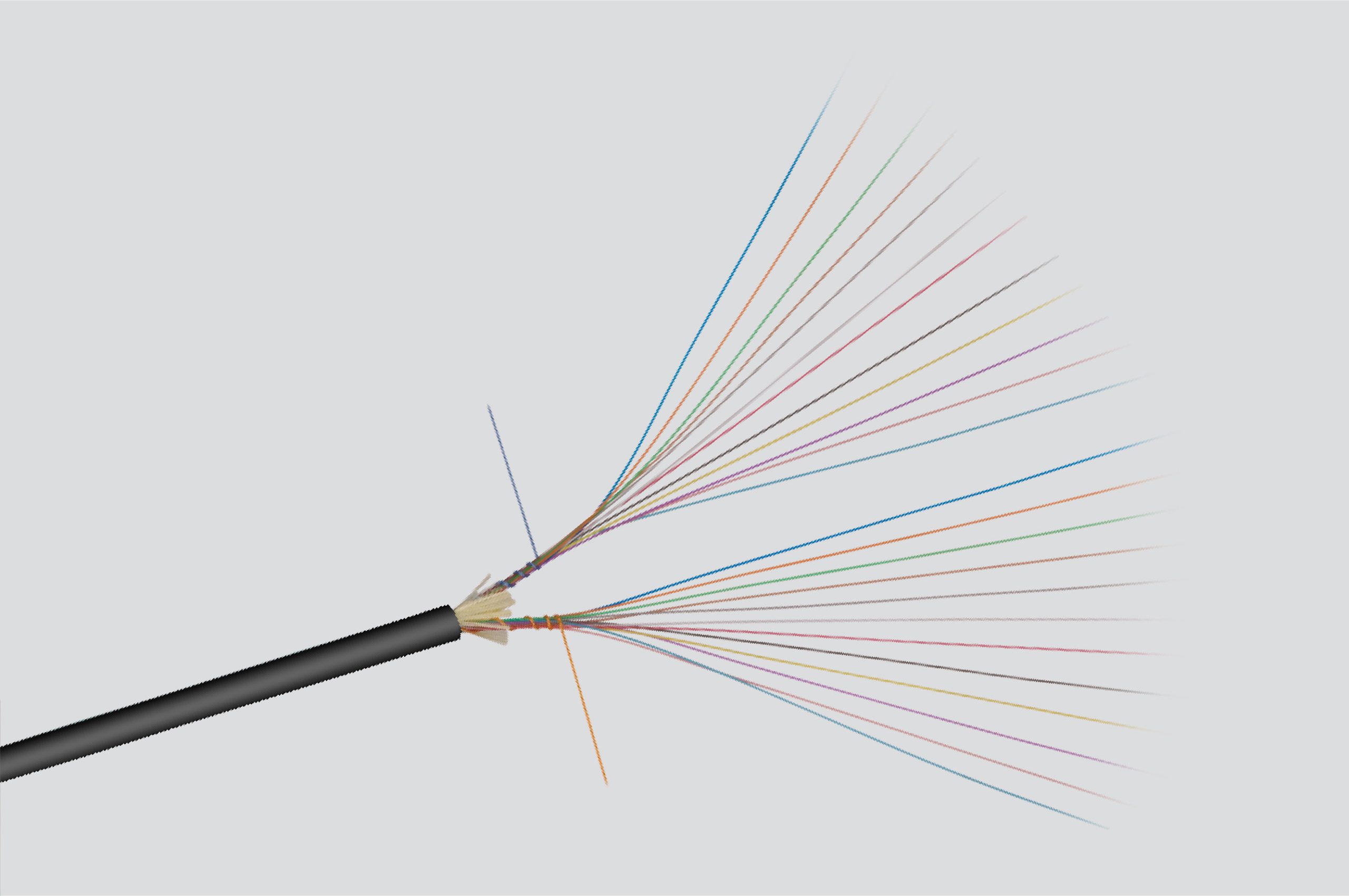

InvisiLight Facade Cord |

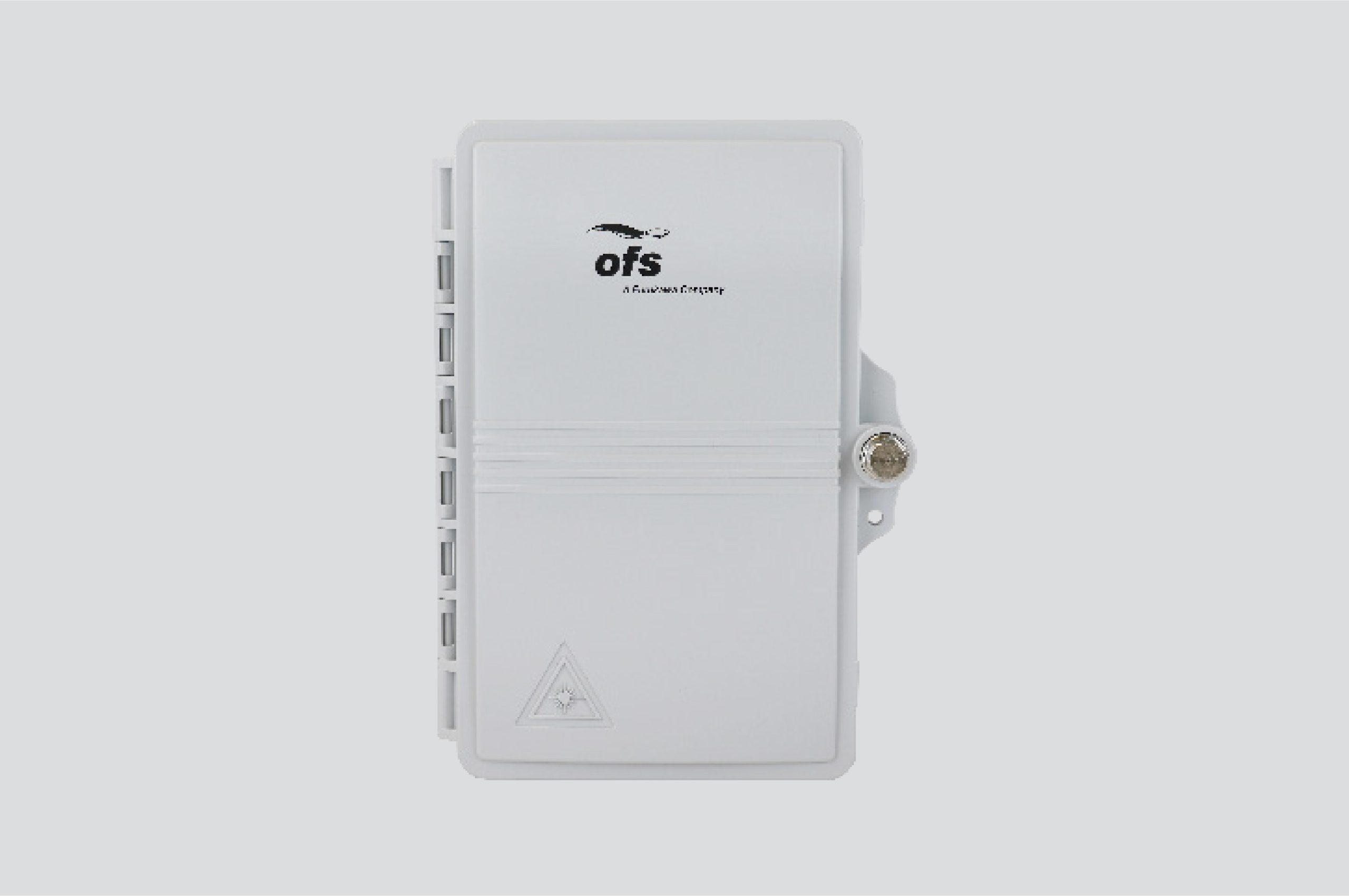

SlimBox® 2- or 4-Fiber
|

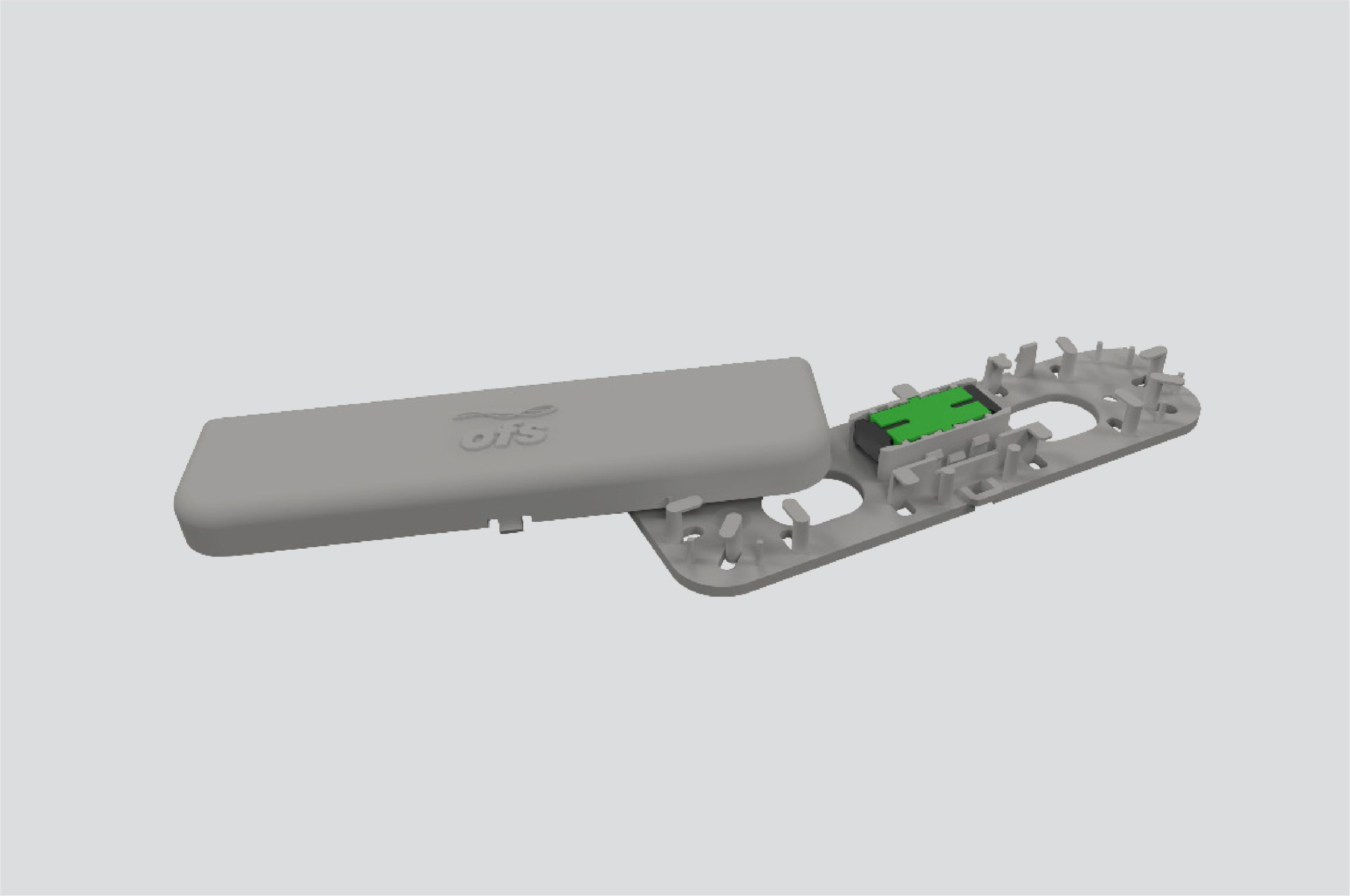

Outdoor Compact POE Module |
These solutions and customized variants for different regions leverage the same proven technology accelerating the adoption of fiber optic services in residential or business premises for an improved consumer experience while lowering costs and speeding installation. Other benefits include higher subscriber acceptance and take rates, higher profitability, faster time-to-revenue and simplified logistics for service providers.
S124M16 Ribbon Fiber Fusion Splicer
Data Sheet | Press Release
EZ!Fuse Splice On ConnectorThe EZ!Fuse Splice On Connector termination system allows for easy results and flexibility in the field. The “splice-on” connector (SOC) eliminates the need for field polishing and significantly improves the quality of the termination and installation time required. The connector is easily assembled by using a process that requires minimal skill or training. These connectors are optimal for use in FTTx application. Both UPC and APC polishing are available for single-mode fiber. EZ!Fuse Splice On Connector is compatible with the FITEL Fusion Splicers models Ninja, S179, S178 and the EZ-Terminator™. With its simple assembly and high performance quality, the EZ!Fuse SOC termination system is optimized for use in FTTx, data center and other relevant applications. |
|
OPTICAL FIBER INNOVATIONS
OFS offers a wide variety of multimode and single-mode optical fibers for applications ranging from short-reach to long-haul. OFS fibers are manufactured with state-of-the-art processes to ensure the utmost quality, performance, and reliability. OFS fibers have some of the best specifications in the industry that provide tangible performance benefits.
AllWave®, TeraWave®, and TrueWave® Single-mode Fibers
Our comprehensive line of single-mode fibers are designed to optimize system cost and performance for specific applications. Whether it be AllWave G.652D and G.657 fibers, TeraWave G.654 fibers, or TrueWave G.655 & G.656 fibers, each fiber has unique characteristics that can lower overall system cost. Reference our Single-mode Fiber Selection Guide to see which OFS fiber is best for your needs.
LaserWave Multimode Solutions: Better Fiber for Better Connections
Compared to single-mode, multimode fiber continues to be the more cost-effective and lowest power consumption fiber for short-reach applications (< 100 meters) due to generally cheaper and less power-hungry 850 nm VCSEL-based optics. The OFS LaserWave family of OM3, OM4 and OM5 multimode fibers support application speeds ranging from 10 Gb/s all the way to 800 Gb/s and beyond. LaserWave Dual-Band® OM4+ and LaserWave WideBand® OM5 fibers offer extended reach for multi-wavelength WDM applications, including current and future BiDi and SWDM4 solutions.
OFS LaserWave® Multimode optical fibers have enhanced specifications
The glass geometry specifications of OFS LaserWave multimode fibers are best-in-class, providing a tighter fit inside connector ferrules to help minimize connection and insertion loss. This makes it easier to accommodate tight power budgets, and can allow for longer reach or more connections. OFS continues to lead the way in demonstrating superior process and quality control through their continuous improvement process.
LaserWave Multimode Rollable Ribbon Cables
Ultra-Compact Data Center Cables
Improvements to the microbend sensitivity of OFS LaserWave fiber have unlocked Multimode Rollable Ribbon Solutions for high-density multi-fiber interconnects (E.g., 400G SR4, 800G SR8).
- Partially bonded ribbon
- Rolls into a cylinder
- Higher density than flat ribbons
- Enables ribbon splicing
- Ideal for multi-fiber connectors
Compact and lightweight R-Pack™ Backbone Fiber Optic Cables are plenum (12-72 fiber) or dual rated (Riser/CPR 12-144 fiber) for use in demanding building applications.
Higher fiber counts are available in AccuRiser I/O Dual-Rated Fiber Optic Cables (Riser and LSZH/CPR 144-864 fibers). AccuRiser cables simplify transitions from outdoor to indoor use and feature a dual flame rating for universal use throughout much of the world.
OM3 / OM4
LaserWave® FLEX 300/550 Optical Fiber
- Exceptional Fiber Quality: Industry-leading fiber geometry and optical parameters
- High-Speed Capabilities: Supports network speeds to 800 Gb/s and beyond
- Improved Macrobend Performance: Better macrobend performance enables better space utilization and more compact designs, while facilitating jumper MACs
- Enhanced Network Flexibility: Supports added network flexibility
OM4+
LaserWave® Dual-Band OM4+ Multimode Optical Fiber
- Dual-Band Performance: It offers OM5-equivalent performance between 850nm and 910nm wavelengths, supporting bidirectional transmission and maintaining a 100m reach for Terabit Ethernet applications
- Cost-Effective: Positioned between OM4 and OM5, it provides a cost-effective solution for BiDi applications without supporting the full SWDM4 range up to 953nm
- Compatibility: It is fully backward compatible with OM4 standards and applications, ensuring seamless integration with existing infrastructure
OM5
Award Winning LaserWave® WideBand Optical Fiber
- High-Speed Data Transmission: Supports today’s applications including 100/200/400/800 Gb/s Ethernet and 32/64 GFC
- Future-Proofing: Ready for next-generation wideband networks
- Optimized Performance: Optimized for 100 Gb/s duplex (two fiber) transmission using BiDi and SWDM4 applications
